Description

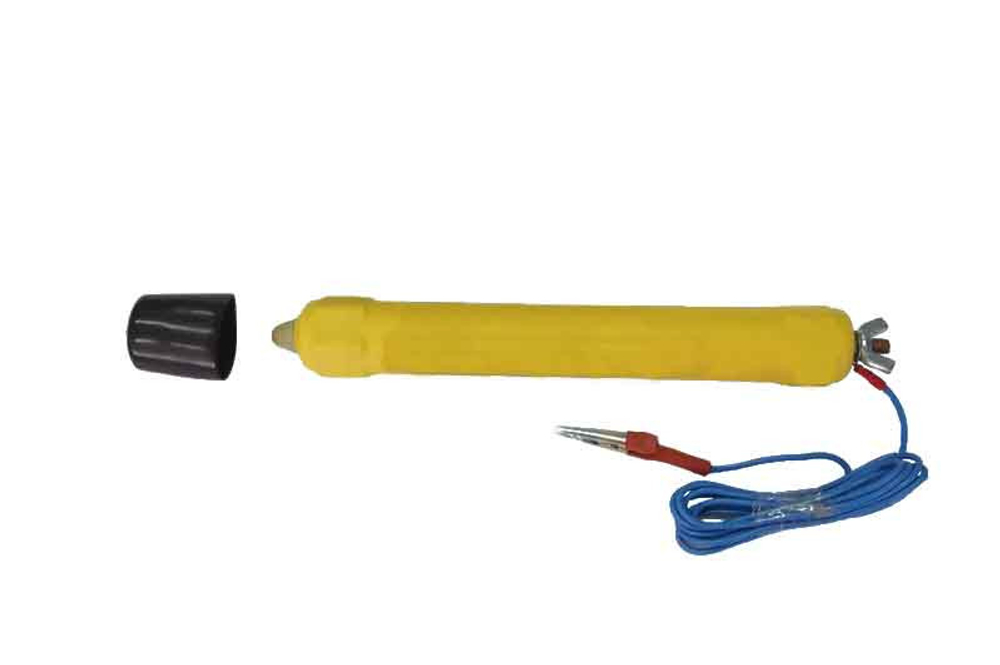

The portable non-polarised reference electrodes ZGANS GES-MS-P are intended for maintenance electrolytic contact to a ground in circuits of definition of efficiency of anticorrosive protection of underground metal constructions without CP test-station on a ground surface.
This electrode is made as a portable for use at ambient temperatures between - 10 ° C to + 40 ° C. The electrode is delivered in dry-charged state and has a collapsible design for refilling electrolyte.
Possible options
- Base

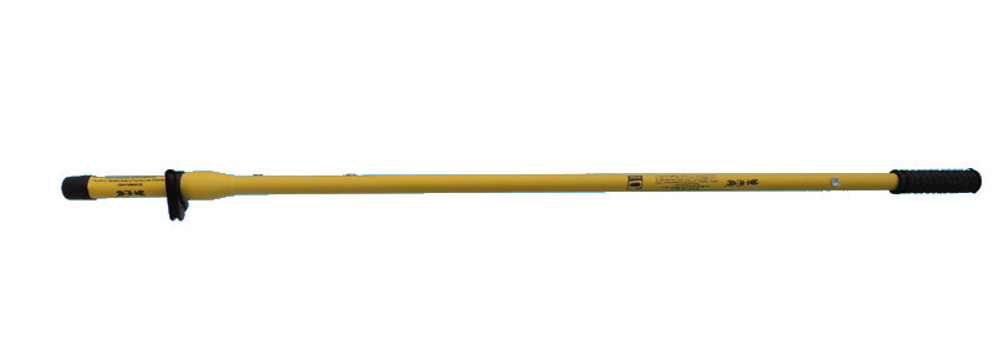

- Base + Extension handle (ZGANS GES-MS-P-R)
- Base + Extension handle + steel electrode (ZGANS GES-MS-P-R-VE)
Benefits
- Can be used in any environment, including dry and aggressive
- Equipped with a ceramic membrane to prevent drying out or contamination with chloride and hydrogen sulphide ions
- Does not require flushing or electrolyte replacement
- Possesses high resistance to mechanical stress
- Can be supplied complete with an extension handle with a secure electrode locking mechanism
Characteristics
Warranty period, years
3
External diameter / height, mm
45/1250 with extension handle & steel electrode,
45/1180 with extension handle,
31/150
Length of wire, m, not less
1,5
Transitional electric resistance, kOhm
no more 15
Potential to AgCl electrode, mV
118±10
Manufacturer
Gas equipment factory «NS» Ltd
Country
Russia
