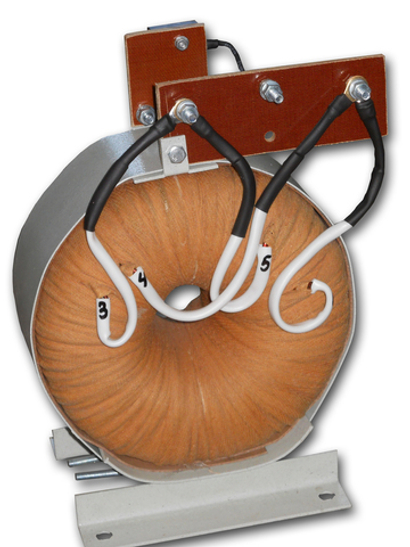

This transformer is applied in the cathodic protection rectifiers of the UKZT, UKZT-U and UKZT-TM series for 2000 W nomial power. Also this one can used for some other CP transformer rectifiers with the same characteristics.
The design of the transformer allows parallel and series switching of the secondary windings (for nominal or doubled voltage).
| Country | Russia |
| Nominal voltage of Main by frequency 50 Hz ,V AC | 220 |
| The working range of temperature, C° | -45...+45 (max +50) |
| Voltage of a firs secondary winding of the transformer, V AC | 60 V (idling) |
| Voltage of a second secondary winding of the transformer, V AC | 60 V (idling) |
| Nominal current of a firs secondary winding of the transformer, Amps AC | 21 А |
| Nominal current of a second secondary winding of the transformer, Amps AC | 21 А |
| Warranty period, years | 1 |
| Manufacturer | Donskaya korona Ltd. |
