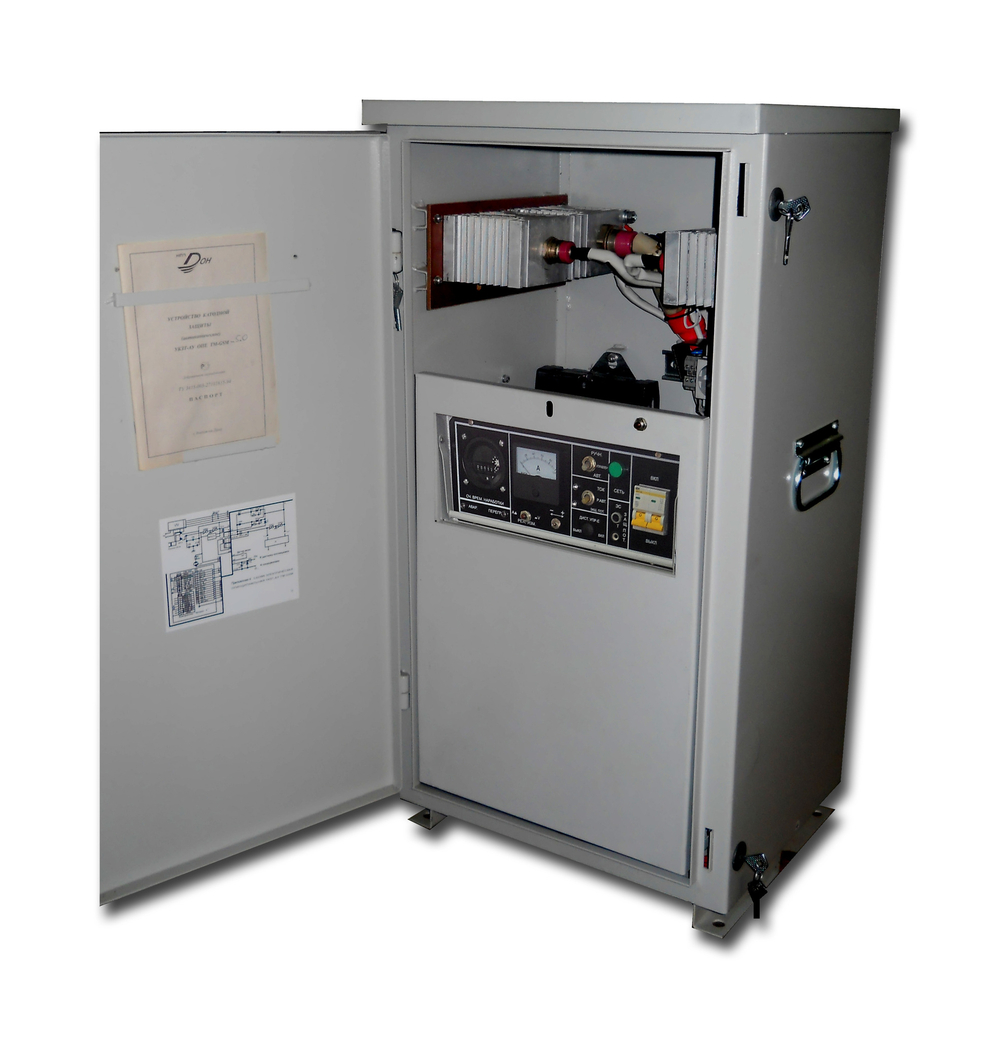

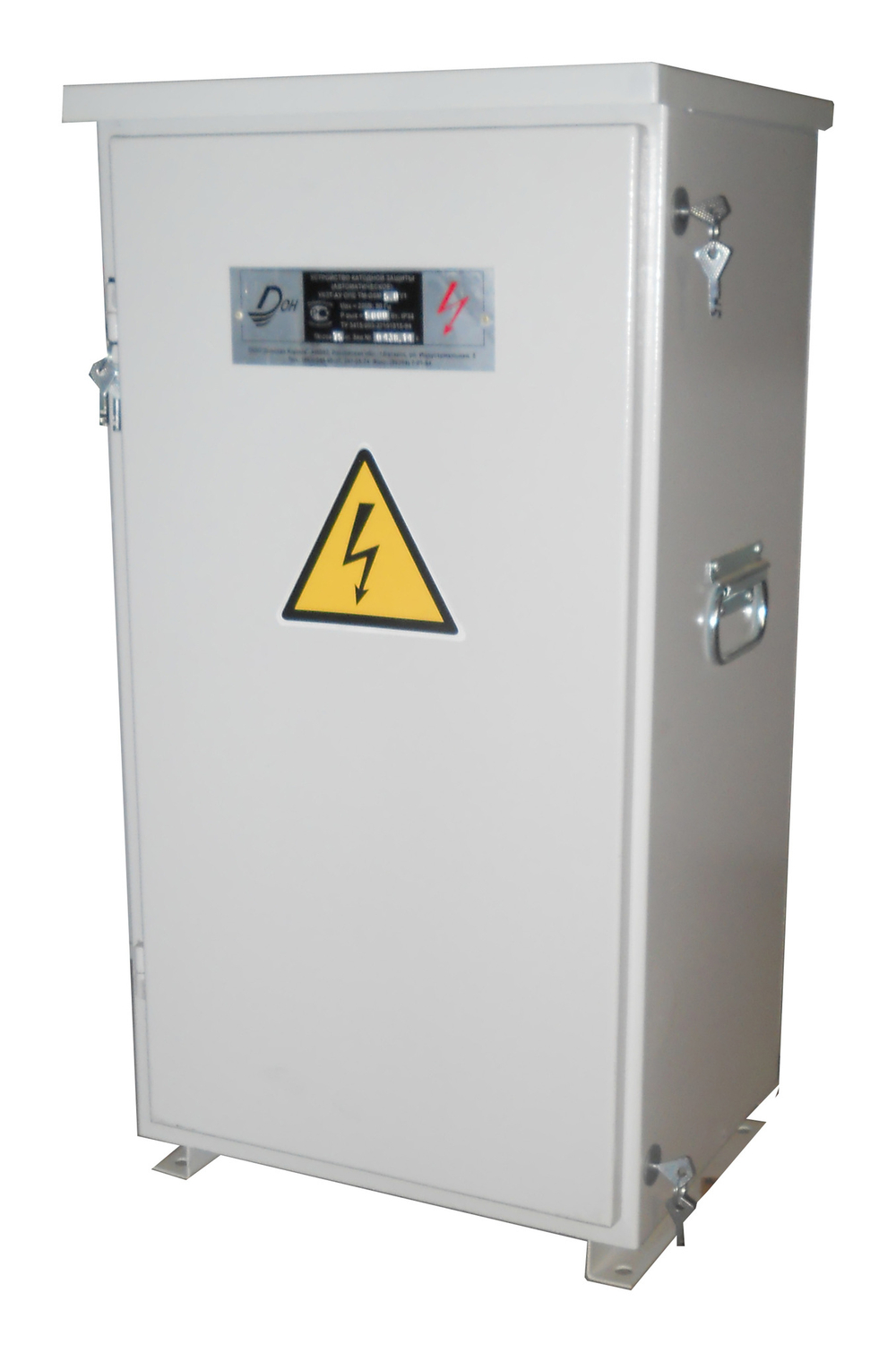

Сathodic protection transformer rectifier UKZT-AU OPE 2,0 N1

Cathodic Protection transformer rectifiers UKZT-U serie are intended for protection of underground metal constructions (pipelines, tanks etc.) against corrosion by cathodic polarization method. This rectifiers are made since 2001.

Installation dimensions of the external casing and internal rotary chassis are uniform for the entire model range of the CPTR UKZT, which largely unifies the use of this CPTR type and provide possibilities of madernisation and upgrading this in future.

Regulatory declaration:

• The device complies with the requirements of Russian Standards GOST 9.602-2016 and GOST R 51164-98 (for "KF" versions)
• Declaration of the EAEU of conformity with the requirements of the technical regulations of the Customs Union
  • "On the safety of low-voltage equipment" (TR CU 004/2011) - GOST 30804.6.2-2013 (IEC 61000-6-2:2005)
  • "Electromagnetic compatibility of technical equipment" (TR CU 020/2011) - GOST IEC 61000-6-4-2016

Design features of the CPTR:

• the arrangement of power elements ensures their optimal functioning and allows the implementation of a full range of nominal capacities of the CPTR in a single design;
• intuitive control panel;
• unique ergonomic design;
• unpretentiousness and reliability in operation;
• simplicity and accessibility in maintenance;
• full compatibility of elements and blocks with modifications of all production years;
• durable body made of 2mm sheet steel;
• increased protection against overvoltage and overload.

Available configurations*:

• KF - integrated or external output voltage pulsation filter;
• MK - complete with a factory-made pedestal;
• SC - pre-installed WAtt meter;
• SM - include a digital control unit with hardware and software protection functions, intelligent control and a self-diagnostic system, with the possibility of retrofitting with telemechanics.

* - You can configure the CPTR yourself by selecting the necessary combination or send a request to the store's email about the need to select an individual configuration.
